Home ProductContinuous Wave Fiber Laser

1.5KW-6KW Multi-Mode CW Fiber Laser

CYM Series of continuous wave fiber lasers, with output powers from 1.5 kW to 6kW, are designed for industrial materials processing application. The output fiber system is armed with QBH cable which makes it easy to match with cutting head.

FEATURES

Modular design，High efficiency，High beam quality，Fiber delivery output，Maintenance free

APPLICATION

Fine cutting，Metal welding，Drilling，3D printing，Cladding，Surface treatment

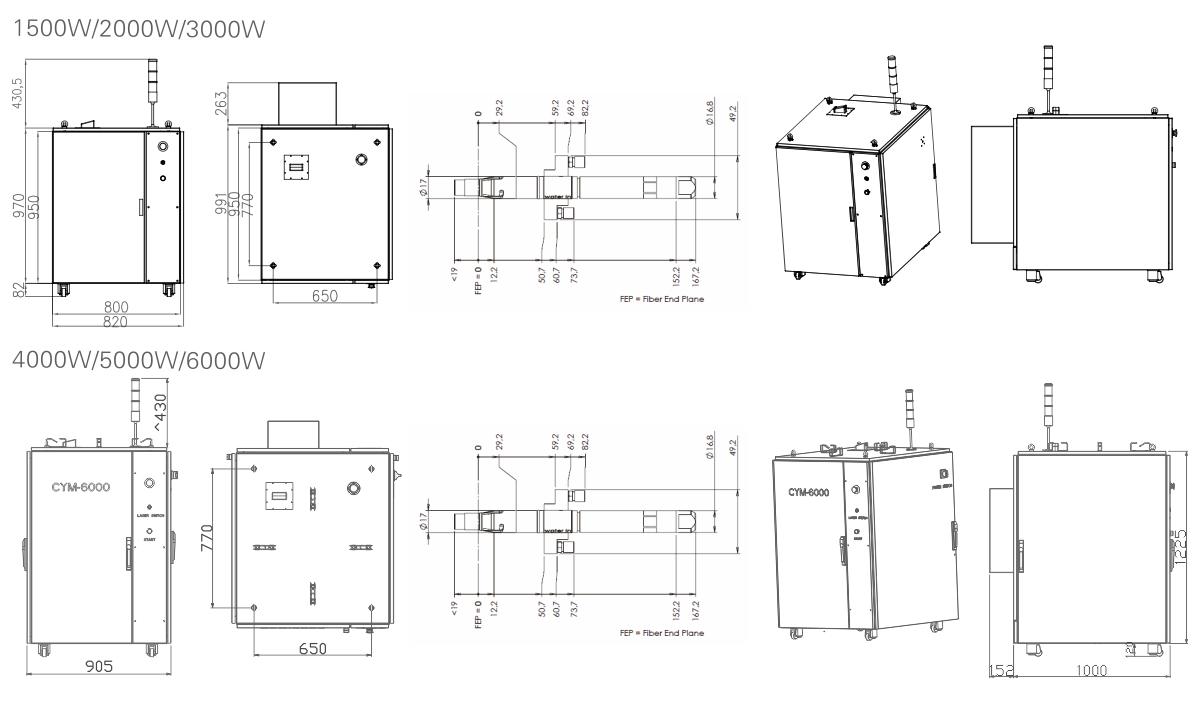

Process video Technical parameter Size chart

PARAMETERS	UNIT	CYM - 1500	CYM - 2000	CYM - 3000	CYM - 4000	CYM - 5000	CYM - 6000
POLARIZATION	/	RANDOM	RANDOM	RANDOM	RANDOM	RANDOM	RANDOM
CENTRAL EMISSION WAVELENGTH	nm	1080	1080	1080	1080	1080	1080
EMISSION BANDWIDTH	nm	< 6	< 6	< 6	< 6	< 6	< 6
MAX. MODULATION FREQUENCY	kHz	10	10	10	10	10	10
NOMINAL AVERAGE OUTPUT POWER	W	1500	2000	3000	4000	5000	6000
OUTPUT POWER TUNABILITY	%	10-100	10-100	10-100	10-100	10-100	10-100
OUTPUT POWER STABILITY	%	± 2 ( >1000 h )	± 2 ( >1000 h )	± 2 ( >1000 h )	± 2 ( >1000 h )	± 2 ( >1000 h )	± 2 ( >1000 h )
FIBER CORE DIAMETER	um	100	100	100	100	100	100
OPTICAL HEAD	/	QBH	QBH	QBH	QBH	QBH	QBH
OPERATING VOLTAGE	V	380 AC	380 AC	380 AC	380 AC	380 AC	380 AC
MAX. POWER CONSUMPTION	kW	6	8	12	16	16	16
COOLING METHOD	/	WATER COOLING	WATER COOLING	WATER COOLING	WATER COOLING	WATER COOLING	WATER COOLING
OUTPUT FIBER DELIVERY LENGTH▲	m	15	15	15	15	15	15
INPUT/OUTPUT INTERFACE	/	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232
AMBIENT TEMPERATURE	℃	10-40	10-40	10-40	10-40	10-40	10-40
DIMENSIONS（WHD）	mm	82014831254	82014831254	82014831254	90516551152	90516551152	90516551152
NET WEIGHT	kg	325	350	375	450	450	450
▲ CUSTOMIZED AVAILABLE.
